Place of Origin : zhejiang

Brand Name : huaxiang

Price : $1,400.00/pieces 1-10 pieces

MOQ : 1

Type : Coating Production Line

Substrate : Steel

Condition : New

Machine Type : powder coating machine, Coating Equipment

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product

Warranty of core components : 1 Year

Core Components : Motor, Engine, Pressure vessel, Gearbox, PLC, Pump, Bearing, Gear

Coating : Vacuum Coating

Dimension(L*W*H) : customized

Warranty : 1 Year

Key Selling Points : Competitive Price

Applicable Industries : Farms, Building Material Shops, Printing Shops, Machinery Repair Shops, Advertising Company, Manufacturing Plant, Construction works , Retail, Energy & Mining

Showroom Location : France, Saudi Arabia, Russia, Uzbekistan, Spain

Weight (KG) : 40

Product name : spray coating machine

Function : Metal Surface Powder Coating

Contact Now

Machine Type Coating Equipment Central Machinery Powder Coating System Energy Mining

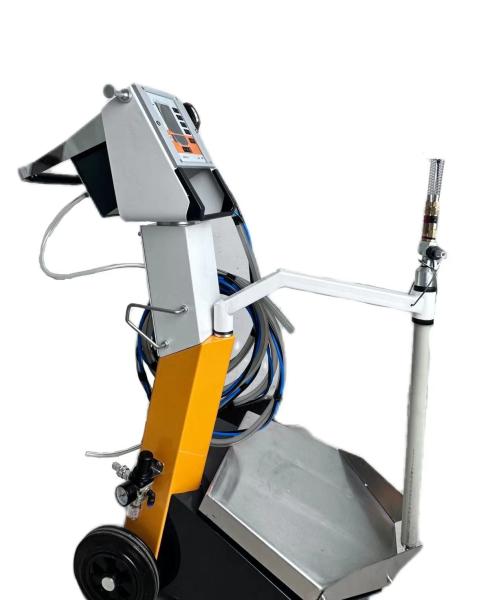

Central Machinery Powder Coating System Wagner Powder Coating powder coating equipment
Built-in integrated high voltage block electrostatic powder spray gun; Automatic powder spray control; Center electrode needle flat nozzle; Magic round powder room, compact powder room and quick color change system; Super corona ring low ion charging technology;
Voltage
100~240VAC
Frenquency
50/60HZ
power
50W
Safety Level
IP54
Ambient Temperature
0-40°C
Input Air pressure
0.55MPa(5.5bar,80PSI)
Maximum powder injection
600g/min
Gun weight
480g
Maximum Output Voltage
120kv
Maximum Output Current
120µA
The length of Powder Tube
3.5meters
Accessories included in the machine
Quantity
Gun
1 SET
Controller
1 SET
Low Temperature Soft Powder Pipe
1 SET /3.5Meters
Vertical Powder Pump
1 SET
Stainless Steel Barrel
1 SET /40L-45L
Overflow Pipe
1 SET
Movable Trolley
1 SET
Oil and Water Separator
1 SET
Consumables
Some
Net weight of machine
40KG
package Size ,Weight
500mm(L)*500mm(W)*1020mm(H), 45-50KG
